Today, I update the most complete blog of mine on maps with Stata. I used spmap, grmap, geoplot with one frame and multiple frames. Other examples are given for regions of Austria, France, Tunisia, and Ghana. The names of the regions can be in the local language or in English:
Key takeaways:
- Earth is a sphere, the orthographic projection (Azimuthal) gives a better sense of that;
- Ben Jann’s geoplot is very versatile for overlapping multiple layers in maps with Stata;
- Do not forget to clear the frames before running the full code, it may create problems;
- China has more than 10 cities with more than 3 milions of inhabitants and 3 cities (Beijing, Shangai, Guangzhou) with more than 15 millions of inhabitants (Urban population);
- China may suffer from a low population density in the West.
Full code is explained below, and the update is available on my GitHub (use the ne_10m_populated_places_aug25.do):
**#******** Download the map files *****************************
clear
clear frames
/*
https://www.naturalearthdata.com/http//www.naturalearthdata.com/download/10m/cultural/ne_10m_populated_places.zip
*/
spshape2dta data\ne_10m_populated_places, replace
// Sort ID in the SHP file
use ne_10m_populated_places_shp.dta, replace
/*
https://www.statalist.org/forums/forum/
general-stata-discussion/general/
1583924-very-weird-spmap-problem-master-data-not-sorted
*/
sort _ID
save ne_10m_populated_places_shp.dta, replace
use ne_10m_populated_places.dta, replace
keep if ISO_A2 == "CN"
sort POP_MAX
/*
grmap POP_MAX using ne_10m_populated_places_shp.dta ///
if ISO_A2 == "CN", id(_ID) ///
fcolor(Blues) ///
osize(vvthin vvthin vvthin vvthin) ///
ndsize(vvthin) ///
ndfcolor(gray) clmethod(quantile) ///
title("Populated Places")
*/
geoframe create towns ///
ne_10m_populated_places.dta, id(_ID) ///
coord(_CX _CY) ///
replace
geoplot ///
(point towns if ISO_A2 == "CN" ///
& POP2025>10000, color(black)) ///
(label towns NAME if POP2025>5000 & ///
ISO_A2 == "CN", color(red) size(small)) ///
, legend compass project(orthographic 50 90)
rename ISO_A2 iso_a2
save ne_10m_populated_places.dta, replace
// Merge Provinces data and Towns data
use ne_10m_admin_1_states_provinces.dta, replace
merge m:m iso_a2 using "ne_10m_populated_places.dta", nogenerate
keep if iso_a2 == "CN"
// Create two geoframes
geoframe create towns ///
ne_10m_populated_places.dta, id(_ID) ///
coord(_CX _CY) ///
replace
geoplot ///
(point towns if iso_a2 == "CN" ///
& POP2025>5000, color(black)) ///
(label towns NAME if POP2025>10000 & ///
iso_a2 == "CN", color(red) size(small)) ///
, legend compass project(orthographic 20 60)
geoframe create regions ///
ne_10m_admin_1_states_provinces.dta, id(_ID) ///
coord(_CX _CY) ///
replace
frame change regions
keep if iso_a2 == "CN" & name != "Paracel Islands"
merge 1:1 _ID using "Regional_GDP.dta", nogenerate
format GDP_* %4.0f
// Draw the map with two layers

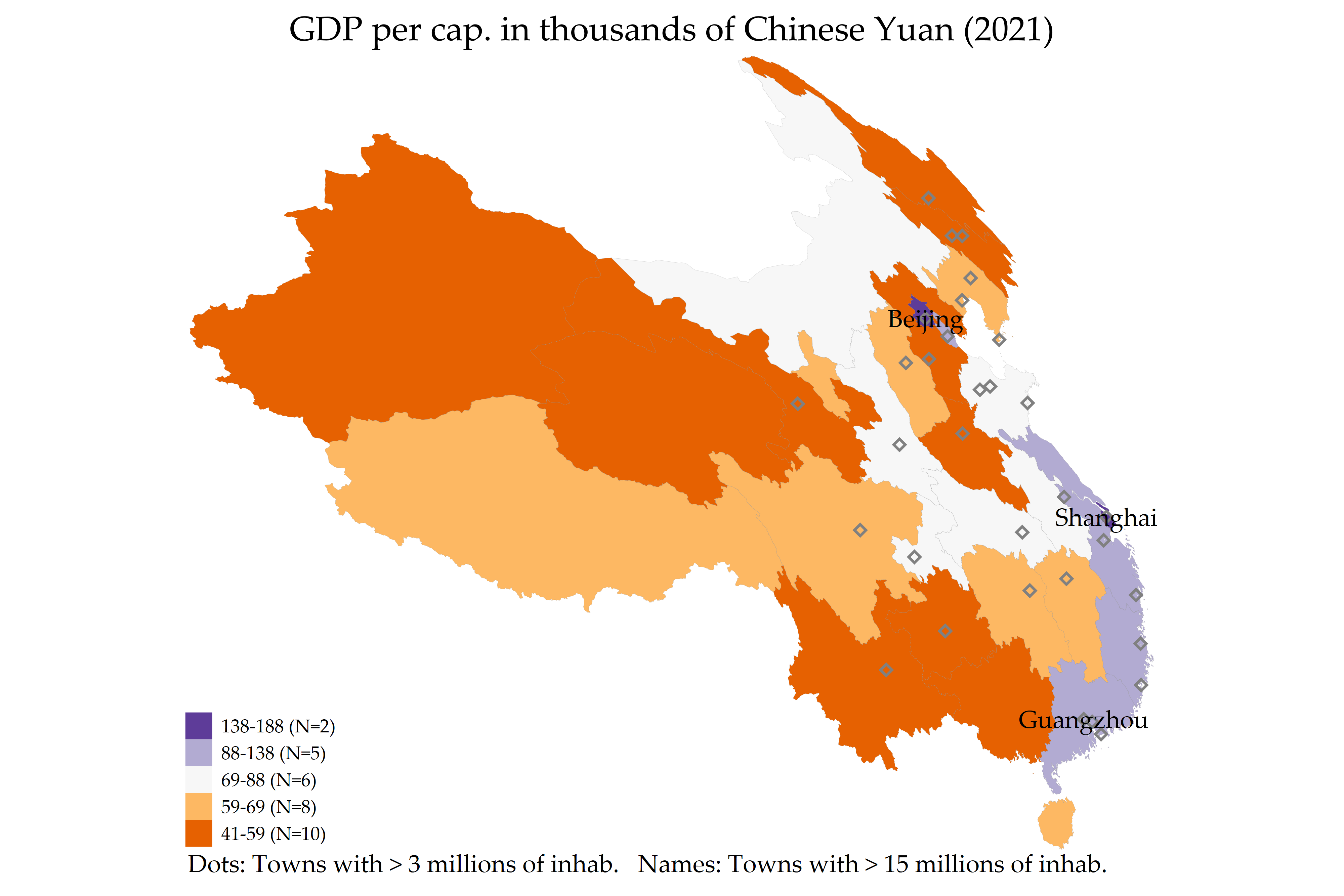

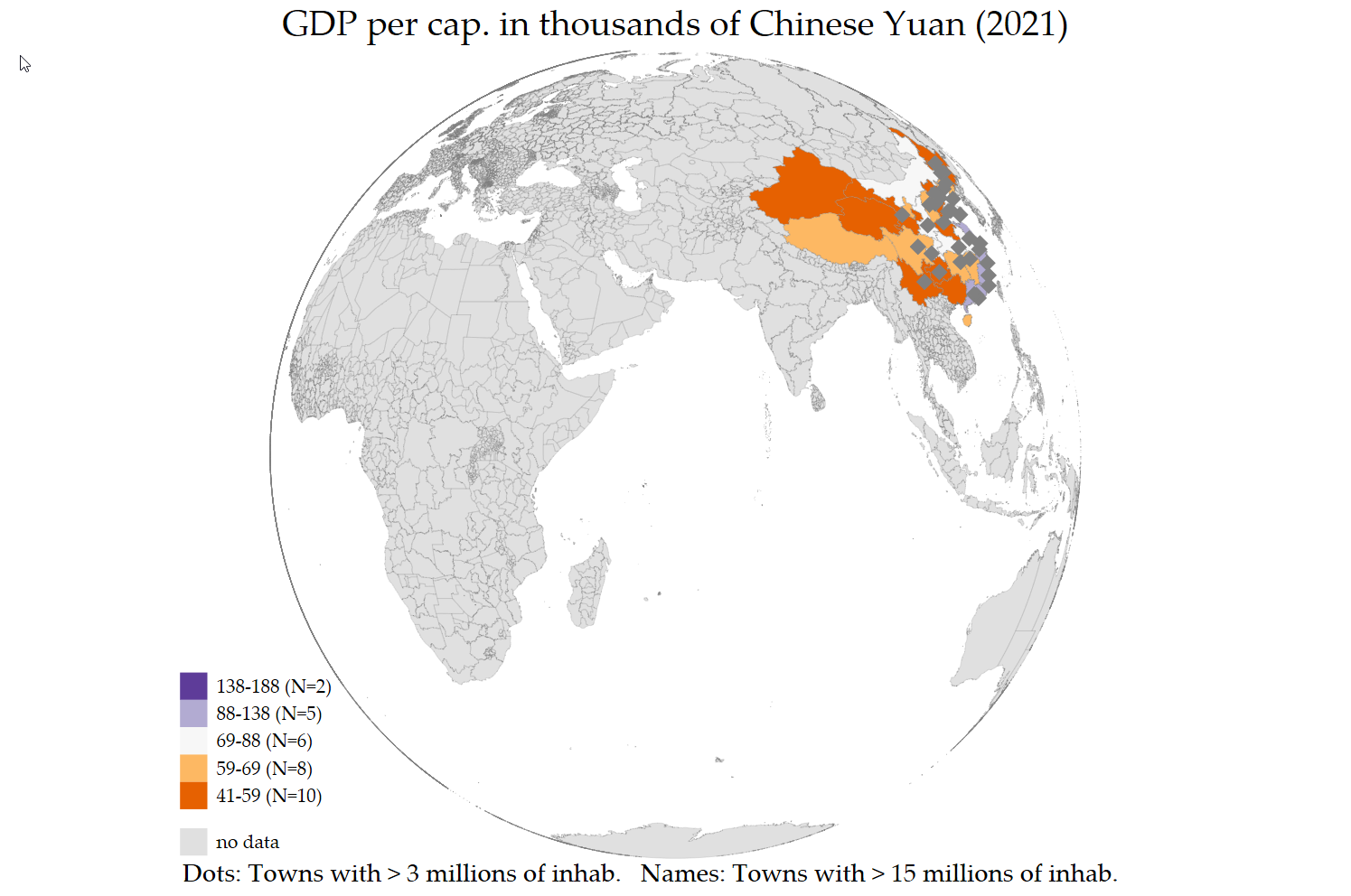

geoplot ///
(area regions GDP_2021, color(PuOr) ///
label("@lb-@ub (N=@n)") ///
levels(5, quantile weight(GDP_2021))) ///
(line regions, lwidth(vvthin)) ///
(point towns if iso_a2 == "CN" ///
& POP2025>3000, color(gray)) ///
(label towns NAME if POP2025>10000 & ///
iso_a2 == "CN", color(black) size(small)) ///
, ///
legend(position(sw)) ///
title("GDP per cap. in thousands of Chinese Yuan (2021)") ///
note(Dots: Towns with > 3 millions of inhab. ///
Names: Towns with > 15 millions of inhab.) project(orthographic 20 60)
graph rename Graph map_china_regions_frame_new, replace
graph export figures\map_china_regions_frame_new.png, as(png) ///
width(4000) replace
graph export figures\map_china_regions_frame_new.pdf, as(pdf) ///
replace
frame dir
frames save myframeset, ///
frames(regions towns regions_shp towns_shp) replace
save data/maps_regions_towns.dta, replace
****************************************************************Conclusion:
As we have seen in this blog, it is possible to draw maps in Stata at the regional level in some simple steps, using orthographic projection (azimuthal). The files for replicating the results in this blog are available on my GitHub.
Further reading
Jann, B. (2025). Drawing maps in Stata using geoplot, 2025 Stata Conference, Nashville, TN, https://www.stata.com/meeting/us25/slides/US25_Jann.pdf.
